Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LIANDE
  • Model Number: LD
  • Use: Waste Plastic Crusher
  • Plastic Type: rubber tire shredding
  • Shaft Design: Double
  • Power: 75kw*2
  • Capacity: 2-3t/h
  • Voltage: 380v
  • Power(W): 75kw*2
  • Dimension(L*W*H): 4000mm*1500mm*2600mm
  • Weight: CUSTOMIZED
  • Certification: CE,ISO,QC
  • After-sales Service Provided: Overseas third-party support available
  • warranty: 1 year
  • reducer: 750 type
  • blade size: diameter:300mm,thickness:30mm
  • blade quantity: 30 pieces
  • diameter of sieve mesh hole: 50mm
  • speed: 18r/min
  • inlet size: 1000mm*1500mm
  • finished tire size: can be customized
  • Advantage: high efficiency
  • color: as request

Packaging & Delivery

Packaging Details: 1.Outside the tire shredder machine we will pack the product with plastic to prevent wet. 2.the machine will be packed by strong wooden material 3.The detailed package about the machine with high standard.4.waterproof package and anti-corrosive package
Delivery Detail: Shipped in 30 days after payment

strong function double shaft tire Shredding machine and production line



Application:
Used for processing waste tires, crushing granulation, and forming a recycling.

Requirements
1. Provide waste tire recycling production line with the associated equipment
2. Raw material: cars, trucks and waste tires
3. Outer diameter ≤ø1200mm
4. Capacity: 1000-3000kg/h
5. Final product size: ≤3mm particle
6. Control method of the production line: full-automatic



the tire recycling production line flow as below:







tire wire drawing machine:

the above photo is named tire drawing machine,its function is to remove the steel in the tire



1.LD-1200 tire wire drawing machine
2.power:11kw
3.weight:2.2T
4.Capacity:60 strip/hour
5.function:

draw out the thick steel wire of tire side to reduce the wear for the equipment and improve the production efficiency



6.dimension:3800*1100*1700mm



the next machine is conveyor whose function is to connect the tire steel wire drawing machine,its motor power is 3kw.



double shaft tire shredder machine with rotary sieve:

waste tire shredder's Advantages:
-Apply to large size products available or kinds of material.
-Special design rotation knife, shape and ranking, strong shearing force and sharp blade. It can crush with high efficiency.
-Equipped with PLC, safe and low noisy and little dust with low speed operation.
-Special alloy steel blade is very sturdy and durable.

model1200
power75+75kw
blade materialD2
stowing inlet1500mm*500mm
dimension4016*2234*2670mm
weight14100kg
capacity2T
functionshearing tyre into strips of 50*50mm
featurelow rotate speed with large torque

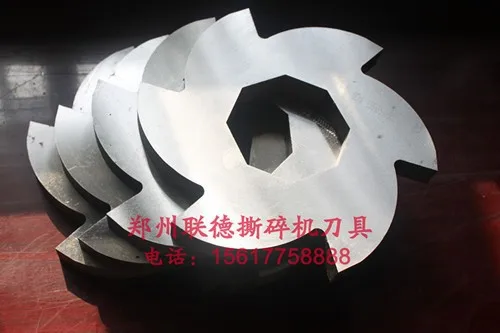

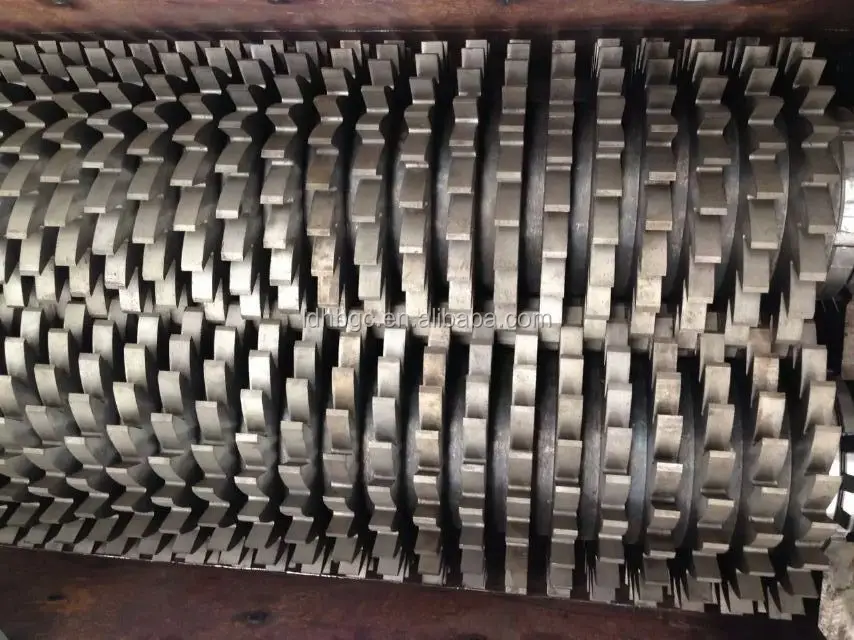

the blades show:
the next should be conveyor to send the tire piece into the tire steel wire separator.the motor power of conveyor is 1.5kw,it also can be customized by requirement.

tire steel wire separator machine:



Model:

LD800

Power (KW):

55

Blade Material:

D2

Screen Mesh Diameter (mm):

Φ18--25

Stowing Inlet (mm):

800×552

Outline Dimensions (mm):

3100×900×2600

Weight (kg):

2100

Capacity  (kg/h):

2000

Functions:

Shearing tyres into strips of 10×20mm



Model:

LD800

Power (KW):

30

Material:

D2

Screen Mesh Diameter (mm):

Φ5

Outline Dimensions (mm):

1700×1600×2800

Weight (kg):

2500

Functions:

Downsizing tyre granules into less thanΦ5mm

Features:

The final product size ≤3mm particle





tire powder miller:

the tire powder miller machine parameter is as below:

model:LD-280      power:15kw          miller disc:280mm     dimension:1785mm*850*1520mm     weight:1200kg



the parameter is below:

model:LD-600        power:1.5kw     dimension:6000mm*500mm*2100mm



note:the size of finished tire can be adjusted according to your requirement,the different sieve mesh hole diameter can regulate the size of finished tire.

Packaging & Shipping







Our Services



1. We will provide all the model shredder machines for the complete production according to customer's requirements.
2. We will provide complete service for factory layout and other information to help buyer.
3. We will provide good service for shredder machine installation and training, until the customers can operate the machine and make stable production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. For long-term cooperation, we always provide good quality, good price and good service to customer.



Company Information

Zhengzhou Liande Environmental Engineering Co.,Ltd. was founded in 2009,located in Zhengzhou city Henan province.



The company specialized in shredder, single shaft shredder, double shaft shredder, waste household appliances shredder, plastic shredder, wood shredder, and copper wire shredder etc environmental equipment. The shredder is widely used to the shredding of paint buckets, waste bikes,motorcycles,cans, beer caps, iron boxes, waste household appliance shells(plastic shells, metal shells),large pipes, pipe fittings, forklift pallets,tyres, barrels, aluminum & copper sheets and irons( thickness is less than 5 mm), waste circuit board, waste cable wires and other large volumes waste. It is convenient to the transport, process and reduce the transportation cost. It constantly adapts to the requirements of each market levels. It has been rated as quality trustworthy enterprises for many years in Henan province.



We bring in foreign technology to enlarge the application scope of shredders based in the previous technology in 2011, and we march on large & nonstandard shredder equipment. The nonstandard products have achieved the recognition of customers through the efforts of technicians. The customers could choose the different types and configurations according to the kinds of raw materials and the requirements to the finished materials (the size of crush granules).



Company Vision: devotes to build brand enterprise in shredder field in China.

Business Philosophy: change the waste into treasure; cyclic utilization, environmental protection, economics and efficiency.

Talent Philosophy: make the best of persons and appoint on their merits.

Safety Philosophy: the life safety of staff is the first.

Service Aim: We offer the excellent products with the most competitive price and best service; bring in home and abroad advanced technology in order to improve the production efficiency and quality; provide the comprehensive spot solution for the customers.



FAQ



1.How to choose proper tire shredder products you want?
you can choose the tire shredder recycling production line accroding to the manufacturing history and experience.



2.Please tell us as detail as what you want?
we can give you the best suggestion according to the details you want



3.What’s the raw material?
the raw material can be kinds of waste tire material.



4.What’s the final products you want to produce?
it can be waste rubber tire pieces or powder



5.What capacity you prefer to ?
800-3000kg/h,different machine type is with different capacity and price.



6.How to control the quality?
We have technical, engineer team design the sample machinery before enter into market.



note:Production QC team ensure the machine manufacturing quality.





If you are interested in our waste tire shredder recycling line,please contact us without any hesitation,and then we can reply you as soon as we can.
